Measuring app performance

The Roku OS records key app performance metrics such as app launch time, app change time, app exit time, and video start time via signal beacons. Signal beacons are markers for the start and stop points of user-initiated actions.

To measure app launch time, for example, beacons are fired when a user presses OK to select an app from the Roku home screen (marking the start point) and when the selected app is fully rendered (the stop point). The elapsed time between the start and stop points is recorded and can be viewed using the BrightScript console. You can then use the feedback from the console to update your application, if needed, to meet the certification requirements.

App launch and video start times must meet the specified certification performance requirements.

Measuring app launch times

For most app performance metrics, the Roku OS automatically fires the beacons for the start and stop points (referred to as "initiate" and "complete" beacons, respectively). Using video start time for example, the Roku OS automatically fires the video start beacons (VODStartInitiate and VODStartComplete). No additional implementation is therefore required for apps to measure video launch times.

For measuring app launch times, however, apps must implement the AppLaunchComplete signal beacon. In addition, apps must implement AppDialog signal beacons if the app UI displays a login or user selection dialog before the home page.

AppLaunch signal beacons

Apps must fire an AppLaunchComplete beacon when the app home page is fully rendered. This beacon must also be fired when video playback starts after handling a deep link, and the app can respond to commands sent via the remote control.

To fire the AppLaunchComplete beacon from the app, call the signalBeacon() function on any node as demonstrated in the following example:

myScene.signalBeacon(“AppLaunchComplete”)

For your app to pass certification, your application must fire the AppLaunchComplete beacon to measure app launch time.

AppDialog signal beacons

If the app UI displays a login, user selection, or end-user license agreement (EULA) dialog before the home page, the app must fire AppDialogInitiate and AppDialogComplete beacons when the dialog loads and exits, respectively.

These beacons, which were introduced in Roku OS 9.3, enable more accurate measurements of app launch times as the time spent on any dialogs requiring user input prior to rendering the home page are subtracted from the overall app launch time. If the app displays more that one dialog before the home page, multiple pairs of AppDialogInitiate/AppDialogComplete beacons may be fired. Do not fire AppDialog beacons on message dialogs that do not involve any user interaction (for example, a "please wait" or "loading" dialog).

To fire the AppDialogInitiate/AppDialogComplete beacons from the app, call the signalBeacon() function on any node as demonstrated in the following example:

myScene.signalBeacon(“AppDialogInitiate”)
myScene.signalBeacon(“AppDialogComplete”)

For your app to pass certification, your application must fire the AppDialogInitiate and AppDialogComplete beacons if the app UI displays a login, user selection, EULA, or any other dialog before the home page.

Measuring EPG launch times

If your app contains an EPG, the application must also fire beacons when the user initiates a keypress to display the EPG (EPGLaunchInitiate) and when the EPG is fully rendered and navigable (EPGLaunchComplete). The following example demonstrates how to do this:

myEPGComponent.signalBeacon(“EPGLaunchInitiate”)
m.top.signalBeacon(“EPGLaunchComplete”)

Only the first sequence of EPG launch beacons is recorded. If a user launches the EPG more than once while the app is running, a warning message is output to the debug console. This warning message, which acknowledges the receipt of the beacon while notifying that subsequent ones will not be recorded, may be ignored.

Only EPG launch sequences that start within 5 seconds of the AppLaunchComplete event being fired qualify as a valid measurements for certification. EPG launch sequences fired after the 5-second window are still recorded so that app performance can be compared against requirements.

Viewing app performance metrics

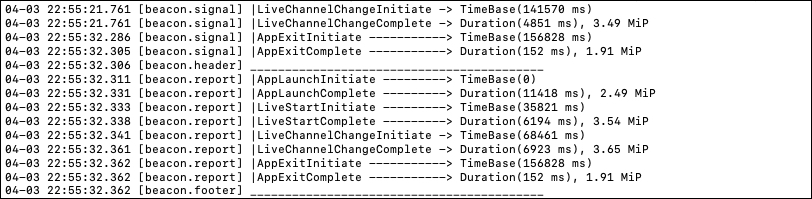

You can use the BrightScript console (port 8085) to view a log with your app's performance metrics. When a beacon is fired, the console immediately outputs statistics related to the initiate or complete beacon. When you exit your app, the console displays a report summarizing the statistics for the just-concluded session, which are described as follows:

Performance metrics reference

The Roku OS can measure and record eight app performance metrics: app launch, app compile, dialog launch, Electronic Program Guide (EPG) launch, video start, live start, change, and channel exit. For each app performance metric, the following table lists how they are measured and when their initiate and complete beacons are fired.
