Creating TVOD apps (Catalog 2.0)

Publishers participating in Roku Pay can monetize content by making it available for rental or purchase. Implementing the transactional video on demand (TVOD) model in a Roku app allows publishers to generate revenue from sporting events, pay-per-views, recent movie releases, and other popular content in their catalog. This enables viewers to enjoy the convenience of consuming a publisher's must-see content on-demand.

Overview

Offering transactional content in an app entails creating products and purchase options for the content in the Developer Dashboard and using the ChannelStore node to check the user's billing status and complete the rental or purchase transaction.

This workflow is intended for:

1. Publishers creating a TVOD-exclusive app (an app containing only transactional content such as movie rentals or purchases).
2. Publishers with subscription video on demand (SVOD) apps that also offer transactional content.

Creating products for TVOD

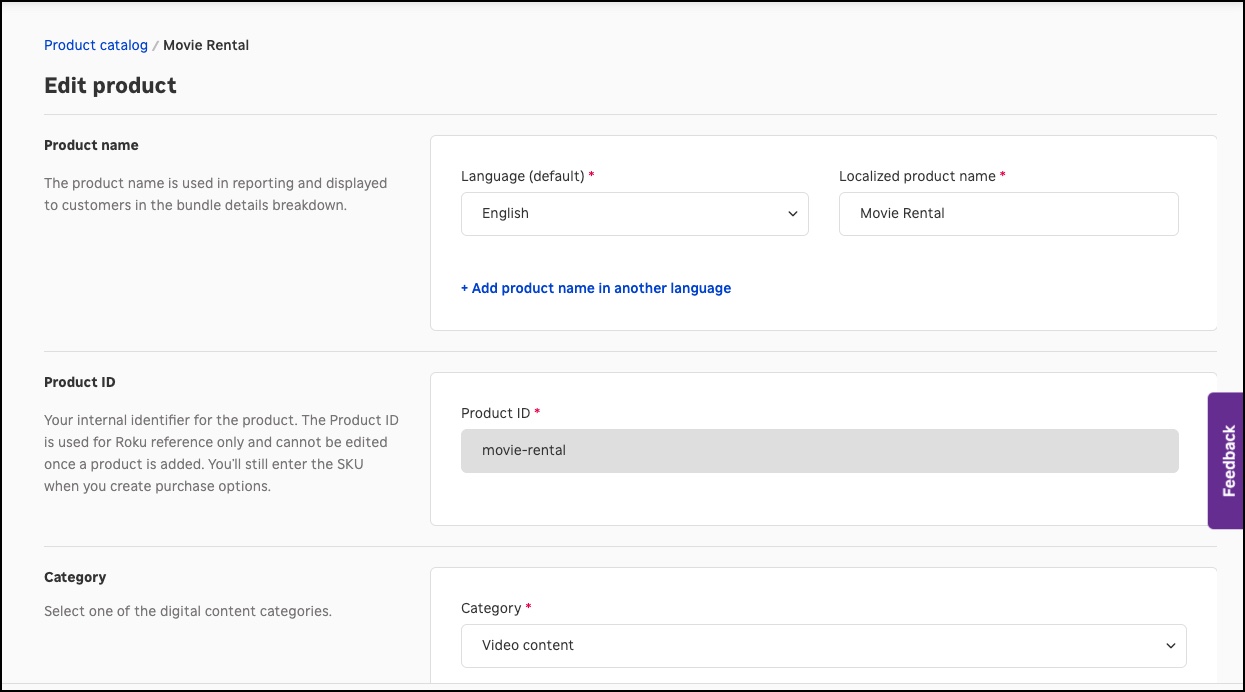

To link transactional content with Roku Pay, you create products and purchase options in the Developer Dashboard. With the TVOD model, products only need to be created for each product category (video content, audio content, or game token). For example, if you plan on offering movie rentals, you only need to create a single product that has the video category.

To manage multiple transactional content items using the same product, your app can leverage your product feed or publisher-specific API to retrieve the item's metadata from your catalog at runtime. When a user selects the content to be purchased, your app can use the runtime metadata to display the item's title, price, and poster image and pass the item's SKU through the ChannelStore functions in order to identify for which item to grant the user access.

Product guidelines

When creating a product for transactional content, make sure to do the following:

• Product Name. Enter a name that generically describes the rental or purchase product (for example, "movie rental", "movie purchase", and so on).



Purchase option guidelines

When creating a purchase option for a TVOD product, make sure to do the following:

• Purchase Type. You must select One-Time Purchase. consumable.



• Quantity (TVOD-exclusive app only): Select 1.

• Price Tier: Select any price tier. The price passed in the ChannelStore APIs overrides the price corresponding to the selected price tier.



Handling transactional purchases

Publishers need to update their app's code to leverage the new DoOrder ChannelStore API, which displays the Roku Pay order confirmation screen where customers complete their purchase of your transactional content.

To update your app with the new DoOrder API, follow these steps:

1. Initialize the ChannelStore API generic request framework. The following code monitors the channelStore.requestStatus field and fires the onRequestStatus() callback function when changes to the requestStatus field occur. The onRequestStatus() function determines which command was sent and sends the results to the dedicated parser for the command.

   function init()
       m.store = m.parent.FindNode("channelStore")
       m.store.observeField("requestStatus", "onRequestStatus")
   end function

   ' Generic SDK API request callback
   function onRequestStatus()
       requestStatus = m.store.requestStatus

       if requestStatus = Invalid
           print "Invalid requestStatus"
       else
           print "requestStatus", requestStatus
           print "requestStatus.command", requestStatus.command
           print "requestStatus.status", requestStatus.status
           print "requestStatus.statusMessage", requestStatus.statusMessage
           print "requestStatus.context", requestStatus.context

           ' requestStatus.status:
           ' 2: Interrupted
           ' 1: Success
           ' 0: Network error
           ' -1: HTTP Error/Timeout
           ' -2: Timeout
           ' -3: Unknown error
           ' -4: Invalid request

           ' Generic request succeeded
           if requestStatus.status = 1 then
               if requestStatus.command = "DoOrder" then
                   onOrderStatus(requestStatus.result)
               end if
           end if
       end if
   end function

2. Send the DoOrder command to purchase the transactional content, and then check the order status.

   sub makeTVODPurchase(requestData as dynamic)
     print  "calling makeTVODPurchase"
     'myOrder = { "code": request.productCode, "name": request.productName, "qty": 1}
     'myOrder = CreateObject("roSGNode", "ContentNode")

     print "request.sku: "; requestData.productCode
     newOrder = []
     order = {
       "orderType": "TVOD",
       "sku": requestData.productCode,
       "contentKey": requestData.contentKey,
       "title": requestData.title,
       "price": requestData.price,
       "originalPrice": requestData.originalPrice,
       "qty": 1
     }
     newOrder.push(order)

     request = {}
     request.params = {
       "orderItems": newOrder,
       "version": 2
     }
     request.command = "DoOrder"
     m.store.request = request
     m.orderType = "purchaseTVOD"
   end sub

   ' DoOrder response parser/helpers
   ' ==================================
   function onOrderStatus(requestResult as object) as void
     print chr(10) + "onOrderStatus"
     message = ""
     if requestResult.status <> 1
         message = "status: " + str(requestResult.status) + chr(10)
         message += "statusMessage: " + requestResult.statusMessage
         purchases = []
     else
         message = "Your Purchase completed successfully" + chr(10)
         message += "statusMessage: " + requestResult.statusMessage + chr(10)
         if type(requestResult.result) = "roAssociativeArray" then
             purchases = requestResult.result.purchases
             ' roArray
             if type(purchases) = "roArray" then
                 for i = 0 to purchases.Count() - 1
                     message += chr(10) + "Product " + AnyToString(i+1) + ":" + chr(10)
                     item = purchases[i]
                     ' roAssociativeArray
                     print type(item)
                     print "item", item
                     if item.replacedPurchase <> invalid then
                         print "item.replacedPurchase", item.replacedPurchase
                     end if
                     keys = item.Keys()
                     for each key in keys
                         strField = AnyToString(item[key])
                         if strField <> Invalid
                             if strField.len() > 0
                                 message += key + " = " + strField + chr(10)
                             else
                                 message += key + " = " + chr(10)
                             end if
                         else
                             message += key + " = " + chr(10)
                         end if
                     end for
                 end for
             end if
         end if
     end if
     print "message", message

     status = {"status": requestResult.status, "statusMessage": requestResult.statusMessage}
     if m.orderType =  "purchase" or m.orderType = "purchaseTVOD"
       m.top.purchaseResult = {"status": status, "purchases": purchases}
     else
       print "Error - can't happen, orderType= "; m.orderType
     end if
     m.orderType = ""

   end function

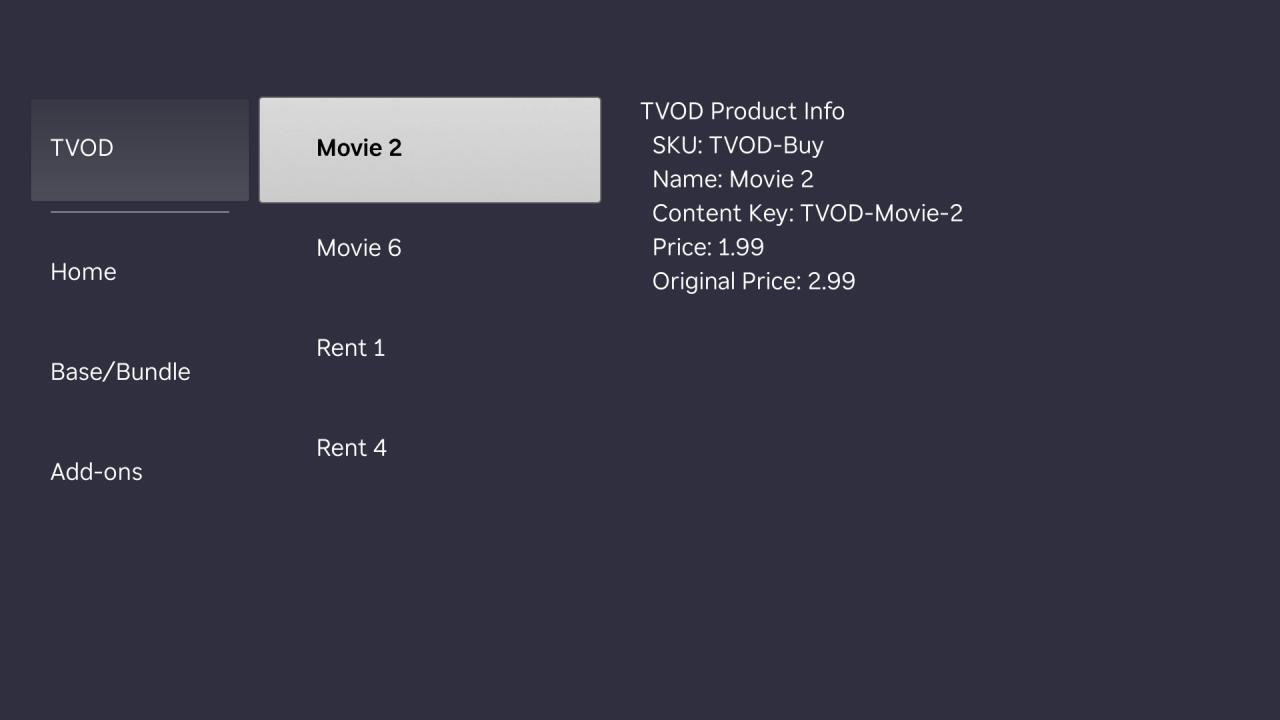

Sample app

You can download and install a sample app that demonstrates how to handle transactional purchases using the new the new DoOrder ChannelStore API.

Appendix A: TVOD API Reference (Catalog 2.0)

The new version of the DoOrder API uses Roku's generic request framework, which enables developers to pass the ChannelStore command, parameters, and context into a single request object (an associative array). The result of the request is encapsulated in a requestStatus object (also an associative array), which includes the status of the request and the data returned by it. Channels must observe the requestStatus field to be notified of changes and fire a callback function to parse and process the Channel Store API commands.

Generic Framework Request Status

The requestStatus object returned by the ChannelStore generic request framework is an roAssociativeArray that has the following hierarchy. Observe that the products, purchase options, and entitlements returned by the ChannelStore commands are encapsulated in a nested result.result associative array.

   "requestStatus": {
       "command": "DoOrder",
       "status": 1,
       "statusMessage": "Success",
       "context": {...},
       "result": {
           "status": 1,
           "statusMessage": "Order Received",
           "purchases": [
               {
                   "amount": "$2.99",
                   "description": "Movie 2",
                   "externalCode": "TVOD-Movie-2",
                   "freeTrialQuantity": 0,
                   "freeTrialType": "None",
                   "name": "One Time Buy",
                   "originalAmount": "$3.99",
                   "promotionApplied": false,
                   "purchaseId": "34210b52-c666-11f0-95ed-7e5be645437d",
                   "qty": 1,
                   "replacedSubscriptionId": "",
                   "rokuCustomerId": "3d6ab75bf9435f748104ee06e9412960",
                   "sku": "TVOD-Buy",
                   "total": "$2.99",
                   "trialCost": "$0.00",
                   "trialQuantity": 0,
                   "trialType": "None",
                   "type": "Consumable"
               }
           ]
       }
   }

DoOrder

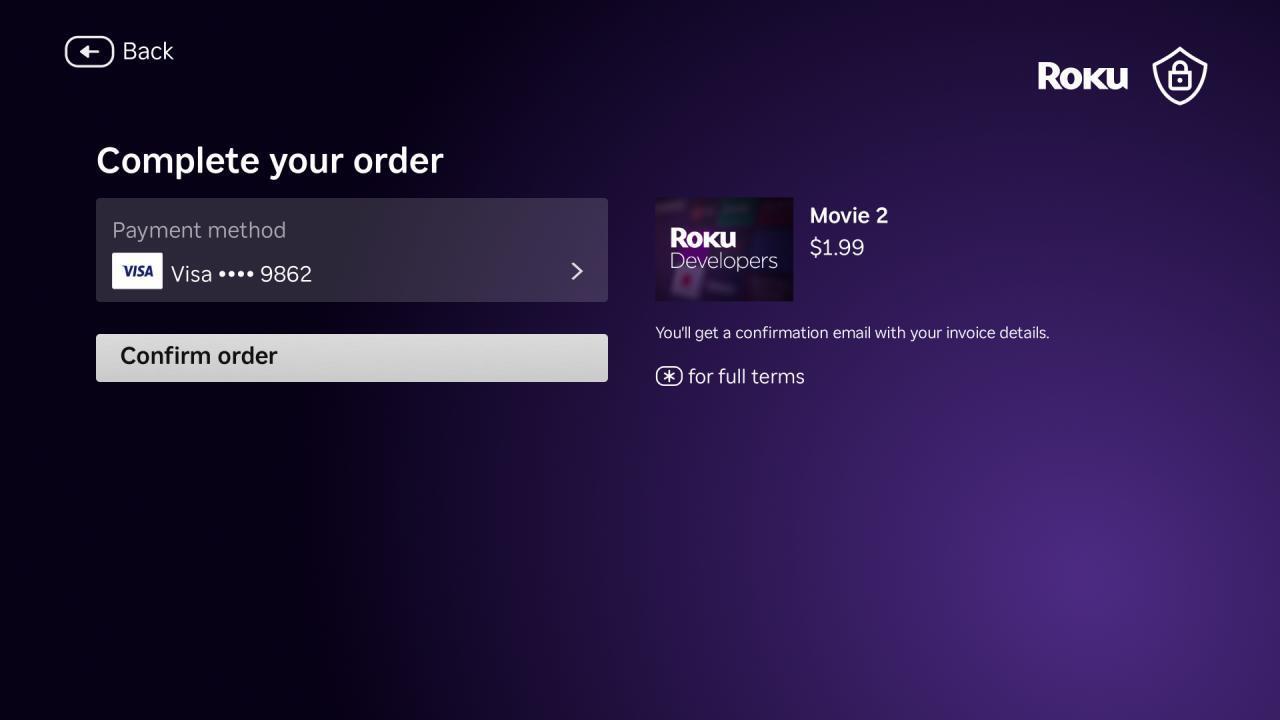

Displays the Roku Pay order confirmation screen, which is populated with information about the current order (product, name, and price). The customer can then either approve and complete the purchase, or cancel the purchase.

request

requestStatus.result
