Roku Analytics Component Library (RACL)

The Roku Analytics Component Library (RACL) implements Google Analytics, Omniture, and Ooyala Analytics, amongst other third-party analytics solutions. The library creates a simple method for using SceneGraph apps with one or more of these analytics solutions.

Support Models

The analytics platforms supported by RACL are classified into three different models:

Model #1

The app passes video-related events to the analytics module as they are received, and the analytics module is responsible for building and firing any analytics beacons needed for that event. This approach is most common for services focused only on video metrics. Platforms that use this model include Brightcove and Ooyala.

Model #2

The app is responsible for deciding when an analytics beacon needs to be fired and collecting the data that needs to be sent with the beacon. The analytics module uses that data to build and fire the beacon. This approach is most common for services that track UX interactions as well as video metrics. Platforms that use this model include Omniture and Google Analytics 4 (GA4).

Model #3

This model utilizes Roku's Event Dispatcher library that allows apps to share in-app user behaviors and events with Roku by inserting custom tracking pixels into the app. The Event Dispatcher enables Roku to customize the Universal Search results based on a user's ability to view a particular piece of content without making a transaction. In other words, content in an app that the user already subscribes to will appear higher in the search results than content behind an additional paywall or content with ads. The Roku Event Dispatcher is the vehicle used to allow Roku to determine a user's authenticated status.

Supported vendors

The Roku Analytics Component Library officially supports the following vendors. Other vendors may be partially supported but may need to be updated to be compatible with RACL.

Ooyala

Model #1

Initialization attributes

Vendor-specific attributes for setContentMetadata

Brightcove

Model #1

Initialization attributes

Vendor-specific attributes for setContentMetadata

Omniture

Model #2

Analytics vendors using Model #2 use trackEvent rather than setContentMetadata.

Google analytics

Model #2

This section has been updated based on Google Analytics 4 (GA4).

Initialization attributes

Example:

m.global.RSG_analytics.init = {
    ga4: {
        api_secret: "apisecret_value"
        measurement_id: "measurementid_value"
        defaultParams: {
            // Applied to the root level of every payload constructed by trackEvent
            client_id: “client_id”

        }
        defaultEventParams: {
            // Applied to all events contained within payloads constructed by trackEvent
            currency: “USD”
        }
}

Guidelines

Manifest entry to use RACL:

sg_component_libs_required=Roku_Analytics

Video Node - notificationInterval: For vendors using model #1, the notificationInterval field of the Video node must be set to 1. The component will check this when setting initVideoPlayer and change the value if necessary.

Mid-roll ads: When using multiple Video nodes for client-side inserted mid-roll ads, initVideoPlayer must be set for each Video node that is created. However, finishedVideoPlayback should only be set once at the end of the content session. finishedVideoPlayback should not be set at the end of mid-roll ads.

Implementation

To use RACL, add a field, "RSG_analytics," to m.global and then create an roSGNode object like so:

m.global.addField("RSG_analytics","node",false)
m.global.RSG_analytics = CreateObject("roSGNode","Roku_Analytics:AnalyticsNode")

addField takes three parameters:

• The fieldName - the name of the field to add
• The type of the field to add
• And a alwaysNotify value which determines if observers are triggered when the field changes or when the value of the field is set

Initialization

This method takes a roAssociativeArray of roAssociativeArrays containing configuration data for each analytics service such as endpoint URLs, API keys, etc. See Supported Vendors for vendor-specific configuration data.

Example:

m.global.RSG_analytics.init = {
    IQ : {
        PCODE : "pcode_value"
    }
    omniture : {
        baseURL : “https://omniture.suite.url/”
        ' For convenience, this allows developers to define a set of parameters and values that will be sent with every omniture call
        defaultParams : {}
    }
}

Methods

Model #1

initVideoPlayer

This method can only be used for vendors using model #1 such as Ooyala or Brightcove.

This method takes a single roAssociativeArray with exactly one attribute named video containing a SceneGraph Video node. If your app uses multiple Video nodes (as might be done for mid-roll ads), this method needs to be set each time a new Video node is created.

Example:

m.global.RSG_analytics.initVideoPlayer = {
    video: m.video
}

setContentMetadata

This method can only be used for vendors using model #1 such as Ooyala or Brightcove.

This method takes a roAssociativeArray of roAssociativeArrays. At least one sub-AA is required and must contain the content metadata for playback. Any other sub-AAs may contain additional information required for analytics providers and are optional.

Example with only Roku content meta-data:

myContent = {
    streamFormat = "mp4"
    streamUrl = "www.mycontent.com/video.mp4"
}

m.global.RSG_analytics.setContentMetadata = {
    content: myContent
}

Example with Roku content meta-data and additional analytics provider information:

myContent = {
    streamFormat = "mp4"
    streamUrl = "www.mycontent.com/video.mp4"
}

metadata = {
    duration : item.length,
    assetId : item.id,
    assetType : "external"
}

m.global.RSG_analytics.setContentMetadata = {
    content: myContent
    IQ : metadata
}

finishedVideoPlayback

This method can only be used for vendors using model #1 such as Ooyala or Brightcove.

This method is similar to initVideoPlayer and takes a single roAssociativeArray with exactly one attribute named video containing a Scenegraph Video Node. This should be set once video playback has finished which will allow the component to finish analytics tasks and stop observing Video node events.

Unlike initVideoPlayer, this method should only be set once the last Video node is closed (i.e., do not set this when closing a Video node after a mid-roll ad).

Example:

sub onVideoState()
    closeStates = {
        finished : "",
        error : ""
    }
    if closeStates[m.video.state] <> invalid then
        'Send video player so analytics node could unobserve all fields and close session properly
        m.global.RSG_analytics.finishedVideoPlayback = {
            video: m.video
        }
        hideVideo() 'implement this to restore prev screen
    end if
end Sub

---

Model #2

trackEvent

This method can only be used for vendors using model #2 such as Google Analytics (GA4) or Omniture.

This method takes a roAssociativeArray of roAssociativeArrays containing the parameters and values that are sent with a beacon. This method can be set anytime an event needs to be fired.

• Google analytics (GA4) attributes

• Omniture attributes

Google Analytics (GA4) events tracking

Developers can track events from the standard GA4 events list, and they can track their custom events and their parameters. To do this, pass the following data for events tracking and any other optional parameters, per GA4 documentation, as needed.

Parameters may also be placed in the defaultParams or defaultEventParams fields during initialization and RAC will automatically apply them to every event.

Example:

m.global.RSG_analytics.trackEvent = {
    GA4: {
        events: [
            {
                name: "test_event"
                params: {
                    "param1": "value1"
                    "param2": 222
                    ' here RAC will append defaultEventParams. For instance, currency from the init example above
                }
            }
        ]
        ' here RAC will append defaultParams, For instance, client_id, api_secret, and measurement_id from the init example above
     }
    omniture: {
        events: “event15,event17”,
        page_name: “splash_screen”,
        c17: “channel_launch”
    }
}

Debug

This method takes a boolean to determine if debug data will be shown in the console. The default value is false (No debug data will be displayed in the console).

Example:

m.global.RSG_analytics.debug = true

The library does send beacons even in debug mode.

Example

Following is a simple example of using RACL with a service that supports Model #1.

Sub VerySimpleShowVideo(item)
    m.global.addField("RSG_analytics","node",false)
    m.global.RSG_analytics = CreateObject("roSGNode","Roku_Analytics:AnalyticsNode")

    ' Analytics Initialization
    m.global.RSG_analytics.init = {
        IQ : {
            PCODE : "pcode_value"
        }
    }

    m.video = m.top.createchild("roSGNode","Video")
    m.video.notificationInterval = 1
    m.video.content = item

    'Setup analytics for this video player
    'We will pass IDs of analytics that should take part in this video playback
    m.global.RSG_analytics.initVideoPlayer = {
        video: m.video
    }
    'set IQ specific metadata
    'This metadata is IQ specific and cannot be stored in ContentNode
    metadata = {
        duration : item.length,
        assetId : item.id,
        assetType : "external"
    }
    m.global.RSG_analytics.setContentMetadata = {
        IQ : metadata
    }

    m.video.observeField("state","onVideoState")
    m.video.control = "start"
End Sub

Sub onVideoState()
    closeStates = {
        finished : "",
        error : ""
    }
    if closeStates[m.video.state] <> invalid then
        'Send video player so analytics node could unobserve all fields and close session properly
        m.global.RSG_analytics.finishedVideoPlayback = {
            video: m.video
        }
        hideVideo() 'implement this to restore prev screen
    end if
end Sub

Expected Output

Once you run the Roku analytics component, you should see the beacons it fires on the BrightScript console. The analytics are displayed on your analytics dashboard.

Example:

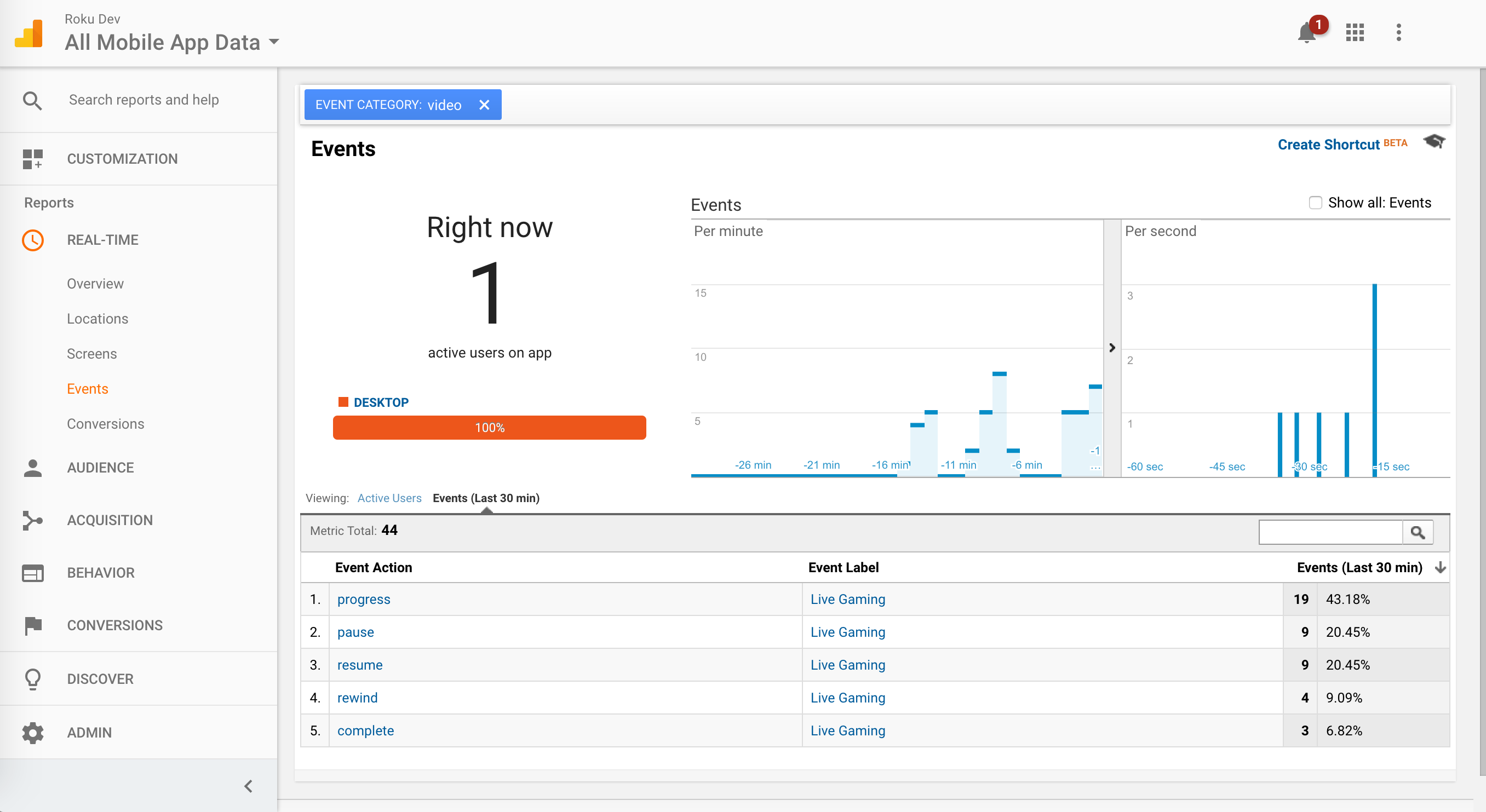

Google Analytics Dashboard after running RACL:

Sample Apps

To test the library, sideload the sample apps below with respect to the analytics platform you are using. You can test either Ooyala (Model #1) or Google Analytics (Model #2).

Use the Sample app #1 to test Ooyala analytics. Change the publisher code (PCODE) in the baseScene.brs to your Ooyala account PCODE to see the analytics.

When using the sample app for Google analytics (Model #2), make sure to change the tracking ID to your Google analytics tracking ID in baseScene.brs under the folder components.
