TimeGrid

OTT providers can use the TimeGrid node to implement an Electronic Program Guide (EPG) in their apps. In an EPG, channels are represented as horizontal rows, one for each channel. Each row has an channel name on the left, and a set of programs airing on that app to the right. The size of each program depends on its duration. One of these programs has a remote control focus highlight indicator on it, and this highlight can be moved around using the remote control (as long as the TimeGrid node has remote control focus).

The TimeGrid node also features an alternative Now/Next view that lists only the programs currently airing and airing next, with their respective start times. See Now/Next mode for more information.

Fields

Content

The TimeGrid node has a **content **field that can be used to store the information for and programs displayed in the grid. This content field should have a single ContentNode that has one child ContentNode per app, and each app ContentNode should have one child ContentNode for each program, sorted by start time in ascending order (earliest programs first).

For any program in any channel, the start time plus the duration of any program must be less than or equal to the start time of the next program.

App attributes

Program attributes

General TimeGrid settings

The following fields are used to configure general time grid settings.

Field	Type	Default	Description
maxDays	int	7	Specifies the total width of the time grid in days.
contentStartTime	roDateTime	0	The earliest time to which the time grid can be scrolled. The scrollable range of times is defined by the sum of the contentStartTime and maxDays fields.
duration	double	9000	Width (in seconds) of the visible section of the time grid. For example, setting this to 10800 will cause the time grid to display 3 hours of programs horizontally (10,800 = 3 hours * 3,600 seconds per hour).
autoDismissTime	roDateTime	0	Specifies the time (in seconds) that the time grid will be displayed before automatically being hidden. Setting this field to 0 will cause the time grid to never be hidden.
ignoreTrickPlayKeys	boolean	FALSE	If set to true, ignores fast forward, rewind, and instant replay key events. Fast forward and rewind key presses normally page the time grid up and down. Instant replay key presses jump the grid to the current time.
overlayBitmapUri	uri	""	Specifies an overlay that is drawn on top of the entire time grid. This is used by default to make the bottom visible rows of the time grid appear to fade out, but could be used to add any overlay be drawn on top of the time grid. In most cases, this should be a 9-patch image that specifies expandable regions. Only set this field to specify a custom bitmap that differs in appearance from the default bitmap. The overlay bitmap is drawn over the full width of the time grid with its bottom aligned to the bottom of the time grid. If the overlayHeight field value is greater than 0 the image will be stretched to the specified height (that is from the bottom of the time grid to the specified height). If overlayHeight field value is set to 0 the bitmap will be drawn at its default height.
overlayHeight	float	0	Specifies the height of the overlay image (see the overlayBitmapUri field). If set to 0 the overlay image is drawn at its default height.

App settings

The following fields are used to configure and control app selection and focus.

Field	Type	Default	Description
focusBitmapUri	uri	""	Specifies the bitmap file used for the focus indicator when the list has focus. In most cases, this should be a 9-patch image that specifies expandable regions. Only set this field to specify a custom bitmap that differs in appearance from the default bitmap.
animateToChannel	int	0	Write-only. Scrolls the grid so the row corresponding to the specified app index is on screen. When the scrolling ends, the program in that row at the current focus time will have focus.
jumpToChannel	int	0	Write-only. Jumps the grid so the row corresponding to the specified app index is on screen. After the jump, the program in that row at the current focus time will have focus.
jumpToTime	string	""	Write-only. Jumps the grid to the program at the specified time (in UTC format). After the jump, the time will be visible, and the program on the currently focused app will have focus.
leftEdgeTargetTime	roDateTime	none	When explicitly set, this triggers a horizontally scrolling animation so that the specified time is displayed at the left edge of the program grid. This field is also set by the firmware in response to remote control key presses that cause horizontal scrolling to provide feedback on the currently visible time range.
channelSelected	int	0	Read-only. Indicates the index of the selected app when the user makes a selection.
channelFocused	int	0	Read-only. Indicates the index of the focused app when a program in the app's row gains focus.
channelUnfocused	int	FALSE	Read-only. Indicates the index of the focused app when a program in the app's row loses focus.

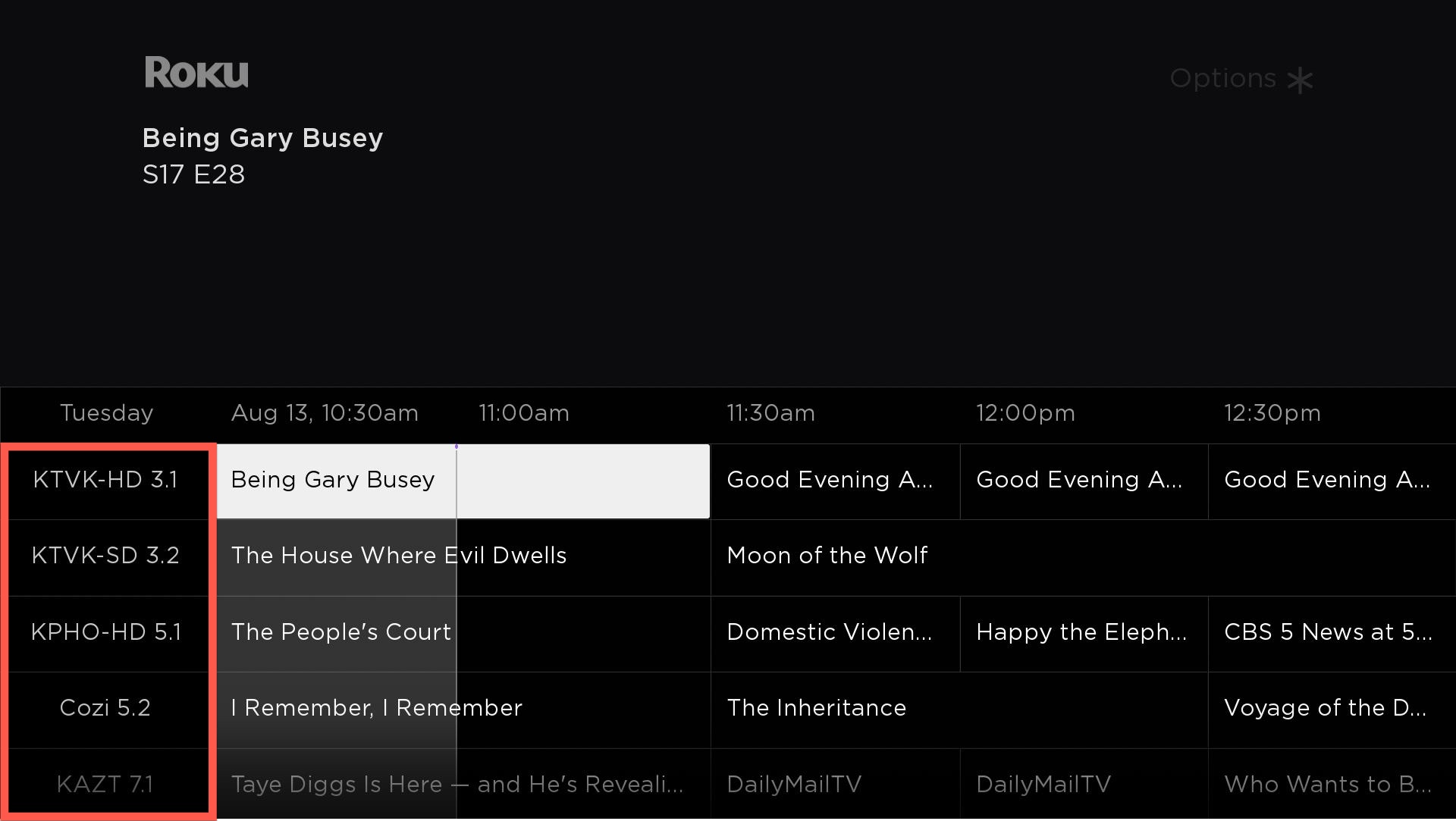

Channel information column

The following fields are used to configure and control the channel information column on the left side of the EPG that lists the app names:

Field	Type	Default	Description
channelInfoComponentName	roSGNode	Object	Uses the specified RSG component to display the data for each channel in the Channel Information column. An instance of this component is created on demand for each channel. The component must define a specific interface. Specifically, the content field of this component can be used to configure the data for the app information column (see Specifying list and grid content for more information). Additionally, observer functions of the optional width, height, and hasFocus fields of the custom component can be used to customize the appearance (see Custom item definitions and focus indicators for more information). If this field is not specified, the default channel info will be displayed, which is an optional channel icon followed by a label containing the name of the app. The icon and label come from the app ContentNodes as described in the Channel Attributes section.
channelInfoSelected	int	0	Read-only. Indicates the index of the selected app when the user selects an item in the Channel Information column.
channelInfoFocused	int	0	Read-only. Indicates the index of the app when an app in the Channel Information column gains focus.
channelInfoUnfocused	int	0	Read-only. Indicates the index of the app when an app in the Channel Information column loses focus.
channelInfoFocusable	boolean	false	Indicates whether the user can move focus into the Channel Information column. If this field is false, the Channel Info column in non-interactive.
jumpToChannelInfo	int	0	Write-only. Jumps the grid immediately to the app info column box of the specified channel index. The app row will be visible, and the app info box for the specified channel will have focus. If the channelInfoFocusable field is false, this field is ignored.
channelInfoWidth	float	system default	Width of the column showing the app names.
infoGridGap	float	0	Spacing between the Channel Information column and the main grid.
channelInfoColumnLabel	string	""	Specifies text used as a label for the header of the Channel Information column (the text displayed above the Channel Information column). If this is not specified, the label will show the day of the week that the left-hand edge of the time grid represents.
channelInfoTextColor	color	system default	Specifies the text color for the app names in the Channel Information column if the channelInfoComponentName field is not specified.
channelInfoFont	roFont	system default	Specifies the font for the app names if the channelInfoComponentName field is not specified.
channelInfoBackgroundBitmapUri	uri	""	Specifies the bitmap file to use as the background for the app names in the grid if the channelInfoComponentName field is not specified. In most cases, this should be a 9-patch image that specifies expandable regions. Only set this field to specify a custom bitmap that differs in appearance from the default bitmap.
channelInfoAlignment			"left" the channelInfo column is displayed on the left (default) "right" the channelInfo column on displayed on the right

Program grid

The following fields are used to configure and control the program titles and cells in the EPG:

Field	Type	Default	Description
programTitleFocusedColor	color	system default	Specifies the text color for the program title that is focused.
programTitleColor	color	system default	Specifies the text color for program titles that are unfocused.
programTitleFont	roFont	system default	Specifies the font for the program titles
programSelected	int	0	Read-only. Indicates the index of the program in the currently focused channel row when the user selects a program.
programFocused	int	0	Read-only. Indicates the index of the program in the currently focused channel row when the program gains focus.
programUnfocused	int	0	Read-only. Indicates the index of the program in the currently focused channel row when the program loses focus.
programFocusedDetails	AssociativeArray		Read-only. Includes focusChannelIndex and focusIndex elements that indicate the app index and program index, respectively, when a program gains focus. This provides a single object that combines the values of the channelFocused and programFocused fields.
jumpToProgram	int	0	Write-only. Jumps the grid immediately to the program corresponding to the specified program index for the currently focused row. After jumping, the program will be visible and have focus.
programHorizMargin	float	14	Specifies the width of the left and right margins of program cell text.
programBackgroundBitmapUri	Uri	""	Specifies the bitmap file to use as the background for the program names in the grid. In most cases, this should be a 9-patch image that specifies expandable regions. Only set this field to specify a custom bitmap that differs in appearance from the default bitmap.
fillProgramGaps	boolean	false	Inserts a program with the "No Data Available" label if there is a gap between the program's start time and the previous program's end time
automaticLoadingDataFeedback	boolean	true	Enables the program data region of the grid to be automatically replaced with the loading message specified in the loadingDataText field whenever the content field has not been set or the user scrolls to a time where the content has not yet been loaded.
showLoadingDataFeedback	boolean	false	Replaces the program data region of the grid with the loading message specified in the loadingDataText field. This field enables you to explicitly control when the loading message is displayed instead of it being automatically shown when automaticLoadingDataFeedbackis enabled. This field is ignored if automaticLoadingDataFeedbackis true.
loadingDataText	string	" Loading Data…" "	The text to be displayed over the program grid whenever the loading message is to be shown.
channelNoDataText	string	"No Data Available"	Displays the specified text on each channel row if no data exists for a specific time (or if there is a gap in the program data).

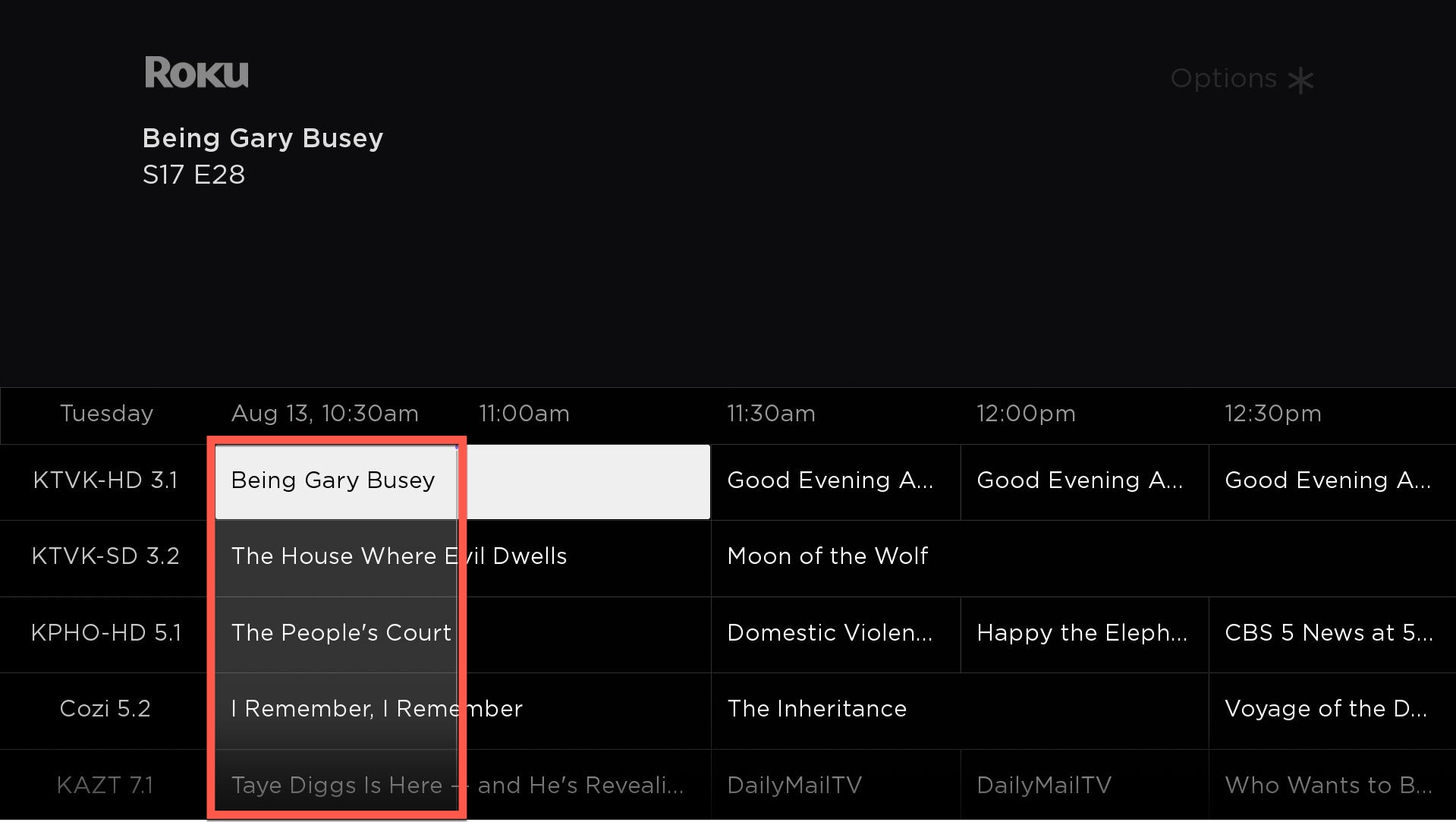

Past Time Screen

The following fields are used to configure the appearance of the rectangle that is displayed as part of the background of all programs prior to the current time.

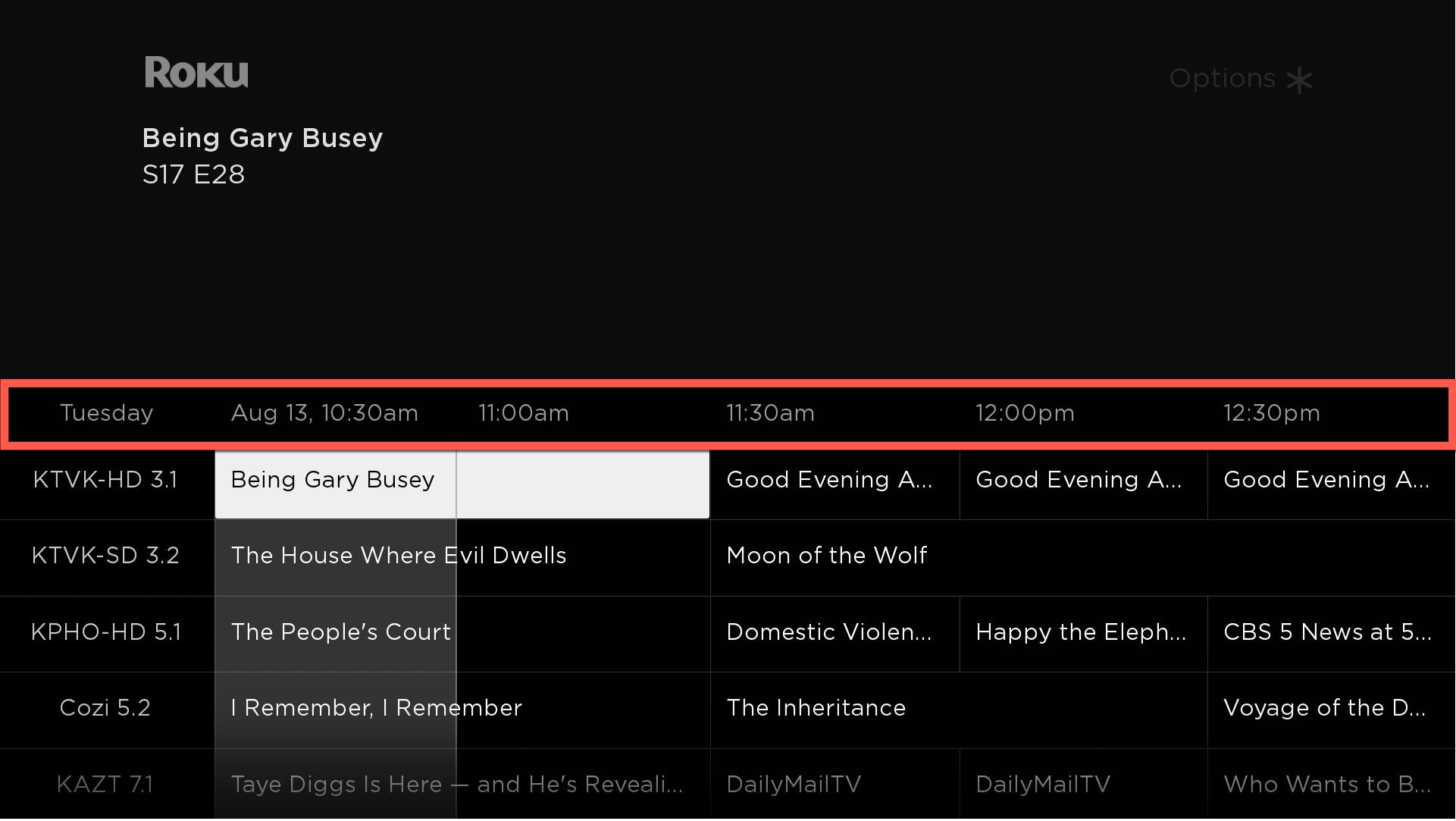

Time Bar

The following fields are used to control and configure the time bar that is displayed horizontally above the program cells:

Field	Type	Default	Description
timeBarHeight	float	50	Specifies the height of the region above the app grid where the time labels are displayed.
timeBarBitmapUri	uri	""	Specifies the bitmap file to use as the background of the time bar that appears above the time grid channel grid. In most cases, this should be a 9-patch image that specifies expandable regions. Only set this field to specify a custom bitmap that differs in appearance from the default bitmap.
timeLabelColor	color	0xffffff99	Specifies the text color for the time labels that are displayed in the time bar at the top of the TimeGrid.
timeLabelFont	font	system default	Specifies the font for the time labels that are displayed in the time bar at the top of the TimeGrid.
timeLabelOffset	float	14	Specifies the offset from the edge of the grid of the leftmost time label.

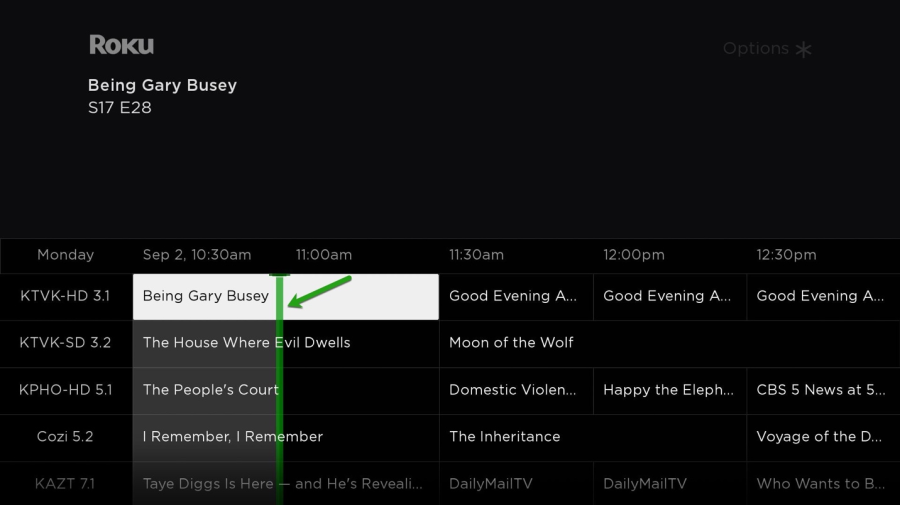

Now Bar

The following fields are used to enable the Now Bar, which is the thin vertical bar displayed at the current time.

Field	Type	Default	Description
nowBarWidth	float	system default	Specifies the width of the Now Bar
nowBarHeight	float	system default	Specifies the height of the Now Bar
nowBarBitmapUri	uri	""	Specifies the bitmap file used for the Now Bar. In most cases, this should be a 9-patch image that specifies expandable regions. Only set this field to specify a custom bitmap that differs in appearance from the default bitmap.
nowBarBlendColor	color	system default	Tints the Now Bar by multiplying the color of each pixel by the specified value. If this value is not set to a value other than the default value, no color blending will be performed.
nowBarOffset	int	0	Specifies the number of pixels the left edge of the Now Bar is offset from the current time.
minimumNowBarOffset	roDateTime	300	Specifies (in seconds) the nearest that the Now Bar can be to the left-hand edge of the time grid. If the Now Bar advances to the minimumNowBarOffset field value plus 30 minutes the time grid will automatically scroll right 30 minutes.

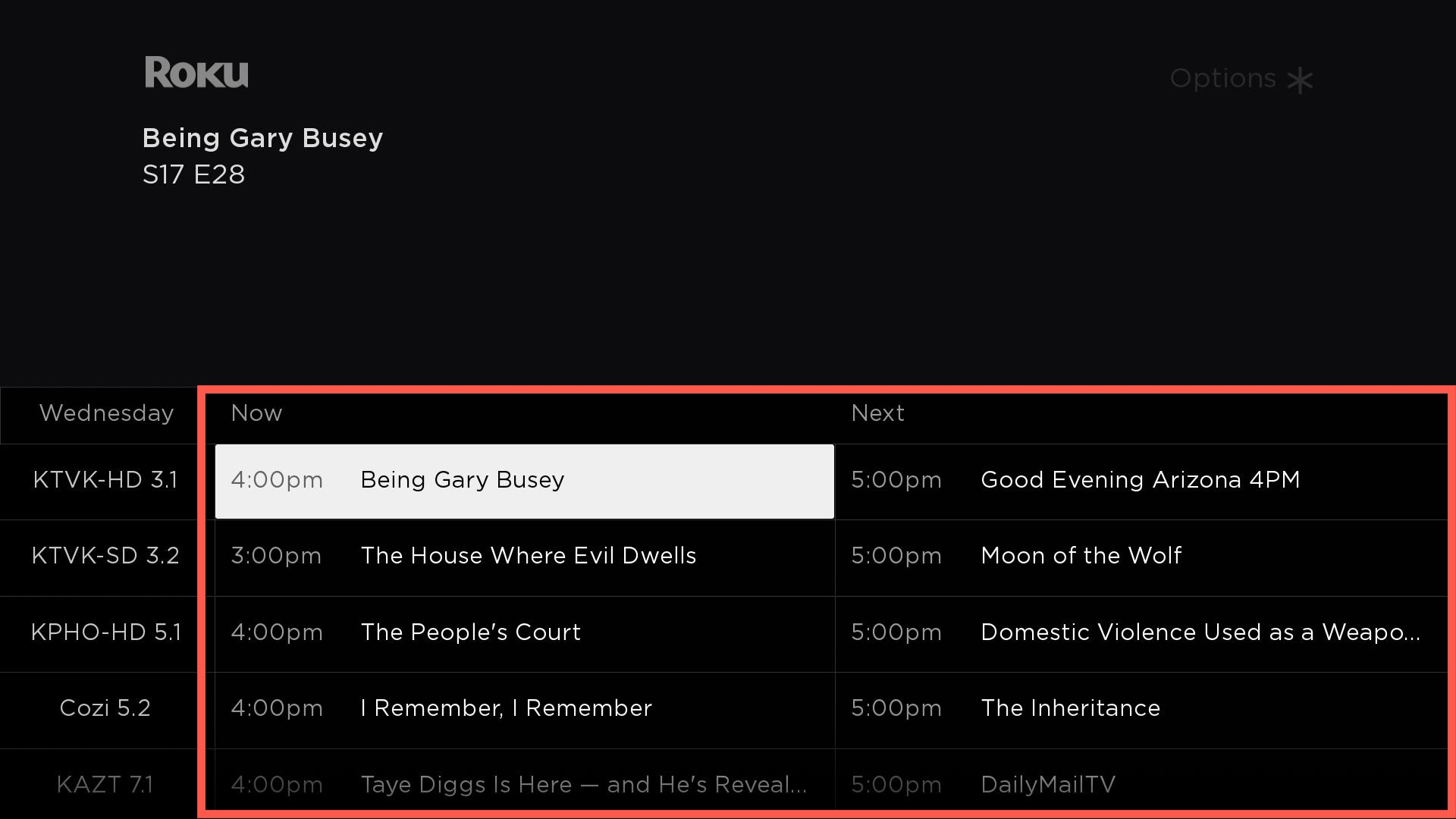

Now/Next mode

When the TimeGrid is in Now/Next mode, the program grid only contains Now and Next columns listing the programs currently and subsequently airing on each channel, with their respective start times. The following fields are used to enable Now/Next mode, configure the Now and Next labels displayed above the program cells, and configure the program labels and cells while in this mode.

Measuring EPG launch times

Apps with an EPG must fire signal beacons to measure the EPG launch time. Beacons must be fired when the user initiates a keypress to display the EPG (EPGLaunchInitiate) and when the EPG is fully rendered and navigable (EPGLaunchComplete). See Measuring Channel Performance for more information.

Sample app

You can download and install a sample app that demonstrates how to use the TimeGridView in the SceneGraph Developer Extensions (SGDEX) to create an EPG. This sample app uses a row-by-row loading model. In this model, a handler config running on the root node of a content tree creates a child node for each row in the EPG. Each of the row child nodes has a handler that creates a child node for each program that should be displayed on that row.
