MiniKeyboard
Extends Group
The MiniKeyboard node class allows a user to enter a string of letters and numerals. The string entered is displayed in a TextEditBox node that is part of the MiniKeyboard node.
The MiniKeyboard node is intended for users to enter a simple case-insensitive string consisting of the letters A-Z and the numerals 0-9. It is intended for use in functions such as "Search", where the entered string need not support general case-sensitive text entry. For general text entry, use a Keyboard node instead.
The MiniKeyboard node must have the key focus in order to work properly.
The default appearance of the MiniKeyboard node is very transparent, allowing the keyboard to pick up most of its color from what is rendered underneath it. The appearance can be customized by changing the keyboardBitmapUri and other fields.

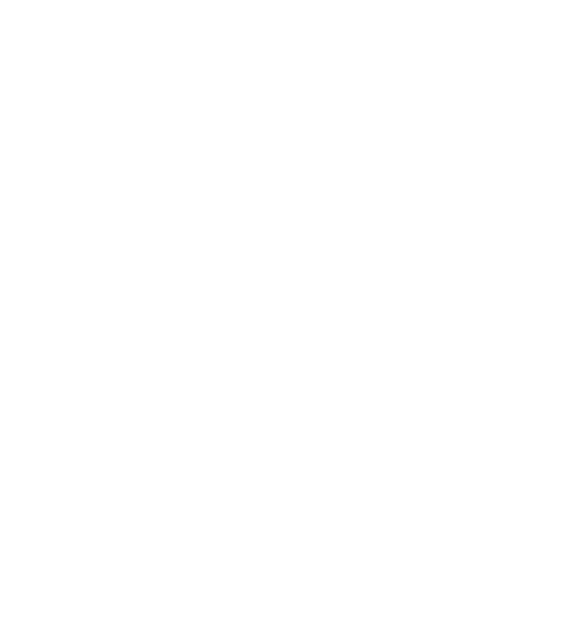

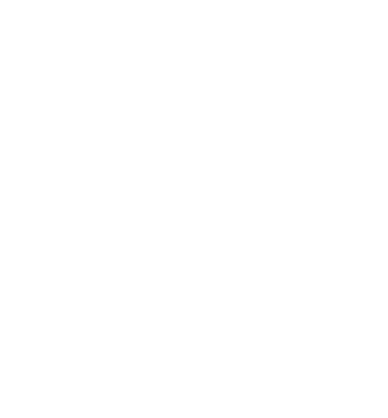

Keyboard Bitmap Templates
- Use the links below to download the template files.
- The files have opaque white lines that show the key outlines with the rest of the images fully transparent. Looking at the files in some image viewers that do not support transparency will result in the images looking all white.
- When creating your own keyboard background artwork, you must maintain the size of the image and the position of the keys in order for it to align properly with the rendered key labels and icons.
Templates
Fields
| Field | Type | Default | Access Permission | Description |
|---|---|---|---|---|
| text | string | "" | READ_WRITE | Contains the string of characters that has been entered |
| keyColor | color | 0xffffffff | READ_WRITE | Specifies the color of the key labels and icons when the Keyboard node does not have the focus |
| focusedKeyColor | color | 0xffffffff | READ_WRITE | Specifies the color of the key labels and icons when the Keyboard node has the focus |
| keyboardBitmapUri | string | "" | READ_WRITE | Specifies the URI of an image file to be loaded to replace the default keyboard image drawn underneath the key label and icons.This image must be carefully designed so that the key positions match the default image. Template images for SD, HD and FHD resolutions are provided below. |
| focusBitmapUri | string | "" | READ_WRITE | Specifies the URI of an image file to be loaded to replace the keyboard focus indicator. This should be a 9-patch image so that it can be stretched to the appropriate size for the double width keys |
| textEditBox | TextEditBox node | system default | READ_ONLY | This provides access to the Keyboard node internal TextEditBox node so that its appearance can be modified. You should not set this field, but you can set the fields of the TextEditBox node (such as, myKeyboard.textEditBox.textColor = "0xFF0000FF") |
| showTextEditBox | boolean | true | READ_WRITE | Specifies whether or not the Keyboard node internal TextEditBox node is displayed. In most cases, it is desirable to display the TextEditBox node so that the user can see the string as it is entered. In some cases though, you might want to show only the keyboard part of the Keyboard node. In those cases, the text field of the node will still contain the string entered by the user, so it can displayed in some different manner |
| lowerCase | boolean | true | READ_WRITE | Specifies whether the 26 letter keys are displayed as lowercase or uppercase |
Sample app
MiniKeyboardExample is a sample app demonstrating MiniKeyboard in action.
